    QSFP-40G-ER4 QSFP+ 40G 1310nm 40KM LC DDM QSFP Transceiver Module

    Description

    Miray’s QSFP-40G-ER4 is a 4x10G hot-pluggable optical transceiver module. It is designed for 40km optical communication applications over single mode fiber. Optcore enables the integration of 4 transmitters, 4 receivers, and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP+ footprint. The QSFP-40G-ER4-OP a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. The transceiver consists of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The product is 40GBASE-ER4 of the IEEE P802.3ba standard.


    Features


    • Up to 11.2Gb/s data rate per channel
    • 4 CWDM lanes MUX/DEMUX
    • SMF LC duplex connector
    • QSFP+ MSA compliant
    • Electrically hot-pluggable
    • Optical link budget: 9.5dBm
    • RoHS-6 compliant and lead-free
    • Digital diagnostic capabilities
    • Single +3.3V power supply
    • Maximum power consumption 3.5W
    • All-metal housing for superior EMI performance
    • Case operating temperature
    • Commercial: 0 ~ +70℃

    Recommended Operating Environment

    ParameterSymbolMinTypicalMaxUnit
    Supply VoltageVcc3.133.33.47V
    Operating Case TemperatureTc070ºC
    Data Rate Per Lanefd9.9510.312511.15Gb/s
    HumidityRh1090%
    Power DissipationPm3.5W
    Fiber Bend RadiusRb3cm

    Optical Parameters(TOP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

    Parameter

    Symbol

    Min

    Typical

    Max

    Unit

    Transmitter

    Signaling Speed per Lane







    Center Wavelength


    λc

    1264.5

    1271

    1277.5


    nm

    1284.5

    1291

    1297.5

    1304.5

    1311

    1317.5

    1324.5

    1331

    1337.5

    Total Average Launch Power

    Pout



    10.5

    dBm

    Transmit OMA per Lane


    -1.3


    5

    dBm

    Average Optical power per lane

    TXPX

    -2.7


    4.5

    dBm

    Difference in launch power between any two lanes (OMA)




    4.7

    dB

    Transmitter Dispersion Penalty

    TDP



    2.6

    dB

    Launch power (OMA) minus TDP per lane


    -0.5



    dBm

    Extinction Ratio

    ER

    4.5



    dB

    Sidemode Suppression ratio

    SSRmin

    30



    dB

    Average Launch Power of OFF Transmitter (each lane)

    Poff



    -30

    dB

    Relative Intensity Noise

    RIN



    -128

    dB/Hz

    Transmitter Eye Mask definition: X1, X2, X3, Y1, Y2, Y3

    {0.25, 0.4, 0.45, 0.25, 0.28, 0.4}

    Jitter Generation


    Per OTL3.4 section 4.14.1


    Receiver

    Signaling Speed per Lane


    9.95


    11.15

    GBd

    Center Wavelength


    λc

    1264.5

    1271

    1277.5


    nm

    1284.5

    1291

    1297.5

    1304.5

    1311

    1317.5

    1324.5

    1331

    1337.5

    Receive Power (OMA) per Lane

    RxOMA



    -4.0

    dBm

    Average Receive Power per Lane

    RXPx

    -21.2


    -4.5

    dBm

    Receiver Sensitivity (OMA) per Lane(@ PRBS 231-1 and BER=5×E-5)

    Rxsens



    -19

    dBm

    Stressed Receiver Sensitivity (OMA)per Lane(@ PRBS 231-1 and BER=10-12)


    SRS




    -16.8


    dBm

    Damage Threshold per Lane

    PMAX



    -8

    dBm

    Return Loss

    RL



    -26

    dB

    Jitter Tolerance


    Per OTL3.4, G.8251


    Vertical eye closure penalty, per lane




    2.2

    dB

    Receive electrical 3 dB upper cutoff frequency, per lane




    12.3

    GHz

    LOS Assert

    LOSA

    -35



    dBm

    LOS De-Assert – OMA

    LOSD



    -19

    dBm

    LOS Hysteresis

    LOSH

    0.5



    dB


    Connection

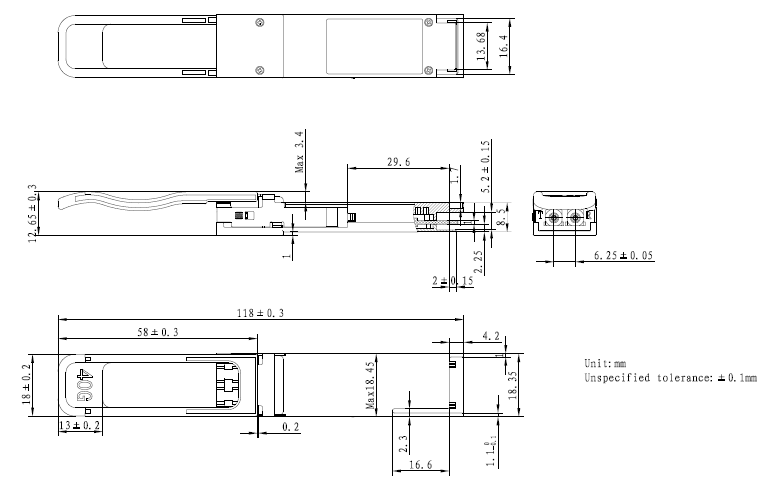

    Dimension

    Product Packing

    Compatibility Test

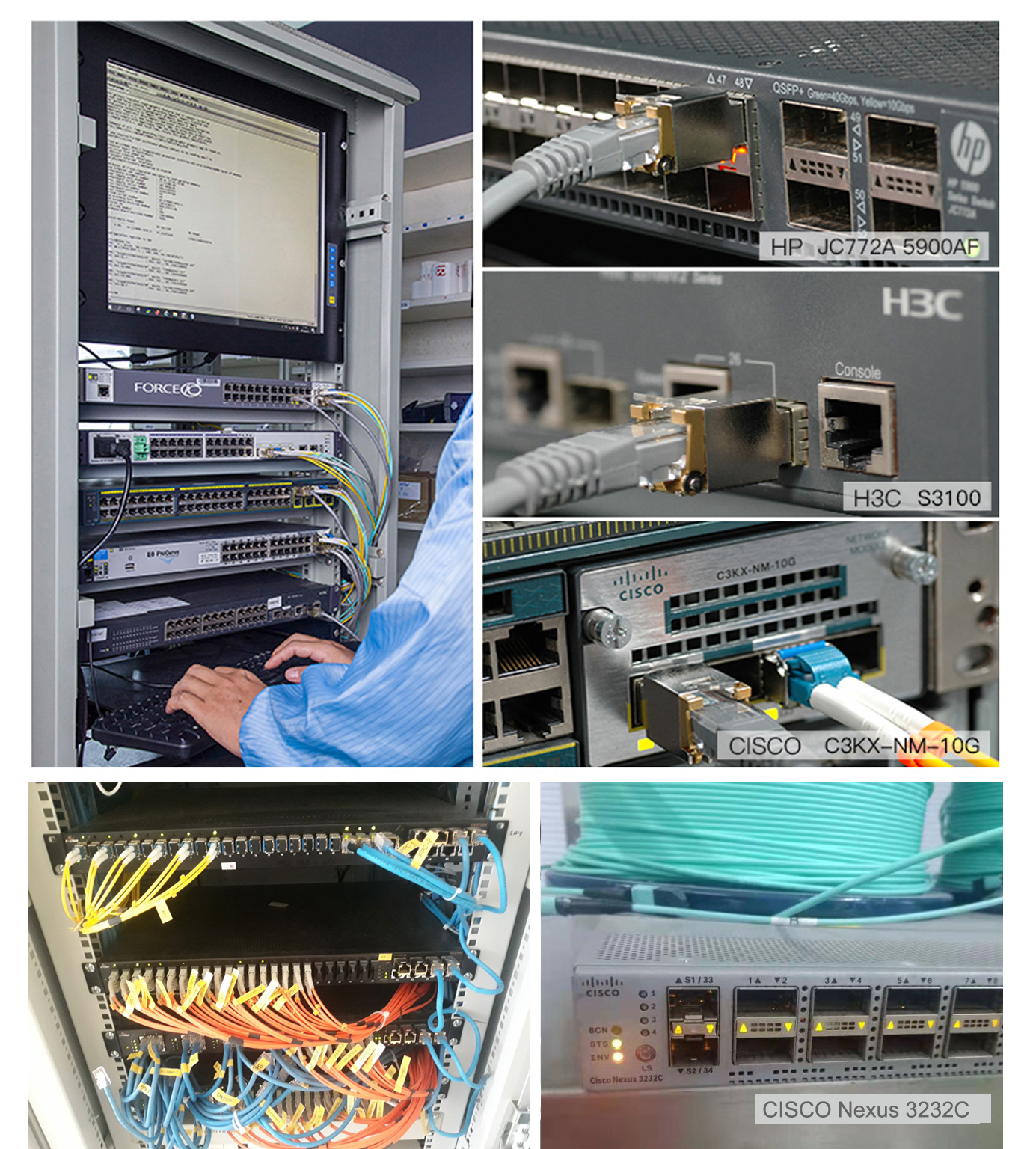

    Compatible Brands

    Production Flow

    For more details, welcome to inquire us freely.
